Description
Engine
- Engine Brand: Kawasaki
- Engine Model: FX801V
- Engine Displacement: 852cc
- Engine Output: 25.5 hp
- Starter Type: Electronic
- Fuel Tank Capacity: 5 gal. US (30 L)
- Lubrication: Full – Spin On
Drive System
- Transmission: 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
- Forward Speed: 10 mph / 16 km/h
- Reverse Speed: 5 mph / 8 km/h

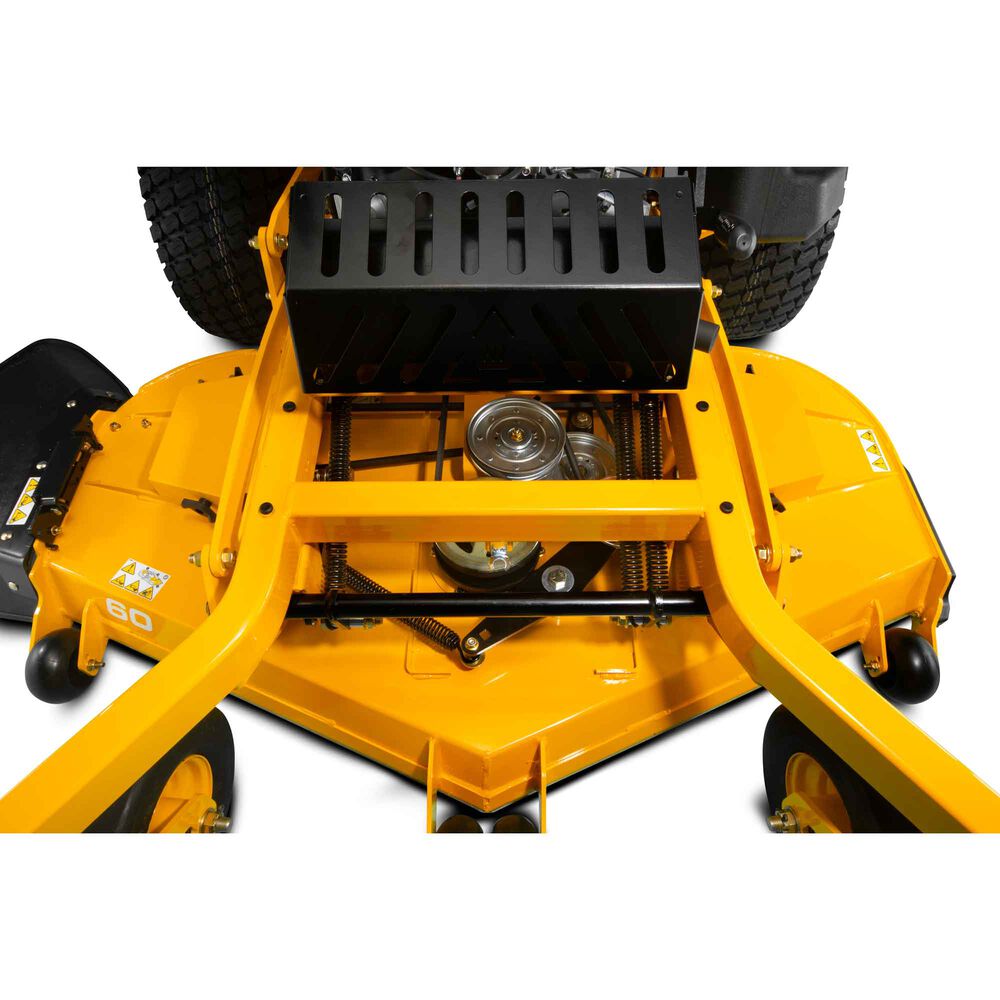

Cutting Deck
- Deck Cutting Width: 60 in
- Deck Material: 10-gauge steel
- Deck Engagement (PTO): Electronic with quick reset
- Deck Construction: 10 ga shell w/ 7 ga top & bottom reinforcement
- Spindle Construction: HD 8″ aluminum housing, 35mm double-row sealed ball bearings, 1-3/8″ through-shaft and maintenance-free design
- Blade(s): Three 21″ long high-lift Marbain blades, 1-1/2″ of blade overlap
- Deck Lift: Hand lever adjusting spring lift, pin selector for height
- Cutting Height Range: 1.5″ to 4.5″ in 1/4″ increments
- Anti-Scalping: 4 front deck gauge wheels
Chassis
- Frame: 2″ x 3″ full-length tube frame
- Front Axle: 2″ x 3″ tube construction
- Front Caster Mount: 3/8″ thick steel
- Front Tires: 13″ x 5″ – 6″ smooth flat-free
- Rear Tires: 24″ x 12″-12″
- Suspension: Hand lever adjust, 3-position spring suspension foot platform
Controls
- Brakes: Hand lever control / external band
- Steering Control: Lap Bar Steering Wheel Control
Dimensions
- Dimensions L/W/H: 69″ / 74″ / 62″
- Weight (approx.): 1,115
Additional Specifications
- Model Number: 53AI8CSU050
Warranty
- Warranty: 3-year / no-hour-limit warranty
- Deck Shell Warranty: 5-year / 1,750 hour limited manufacturer’s warranty
NOTES:
Engine Disclaimer: The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. See your local Cub Cadet Independent Dealer for warranty details.Pricing Disclaimer: Posted price is manufacturer’s suggested sale price. Models and pricing may vary by location. Taxes and delivery not included. Image Disclaimer: Image may not reflect dealer inventory or unit specifications. Specifications Disclaimer: Specifications subject to change without notice. Images may not reflect retailer inventory and/or unit specifications.
