Description
Engine
- Engine Brand: Kohler®
- Engine Model: Pro 7000 series
- Engine Model Number: KT730
- Engine Displacement: 725cc
- Engine Output: 23HP
- Starter Type: Electric
- Fuel Tank Capacity: 5 gal. US (20.82 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 0 qts. US (1.89 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Choke-a-matic
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 210 CCA
- Battery Type: AGM (Absorbent Glass Mat)
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 3100
- Forward Speed: 8 MPH /12.9 km/h
- Reverse Speed: 5 MPH / 5.6 km/h
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting Width: 48 in
- Deck Wash: No
- Deck Material: 10-guage steel
- Deck Engagement (PTO): Electric
- Deck Construction: Fabricated
- Blade(s): Three
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1″ – 4.75″
- Anti-Scalping: Three gauge wheels
- Deck Positions: 17
Chassis
- Frame: 5″ x 3″ tubular steel
- Turning Radius: 0°

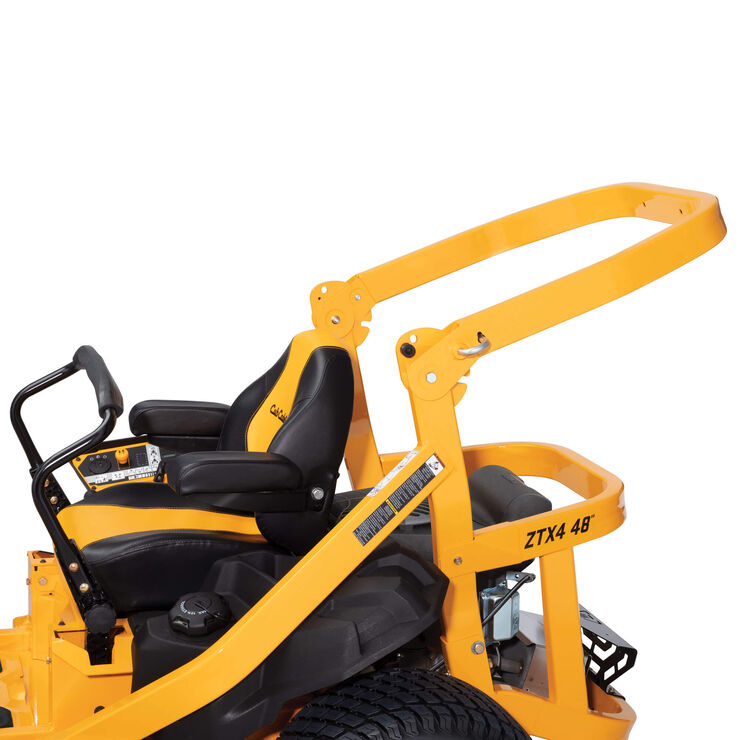

- ROPS: Yes
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Lap Bars
Comfort

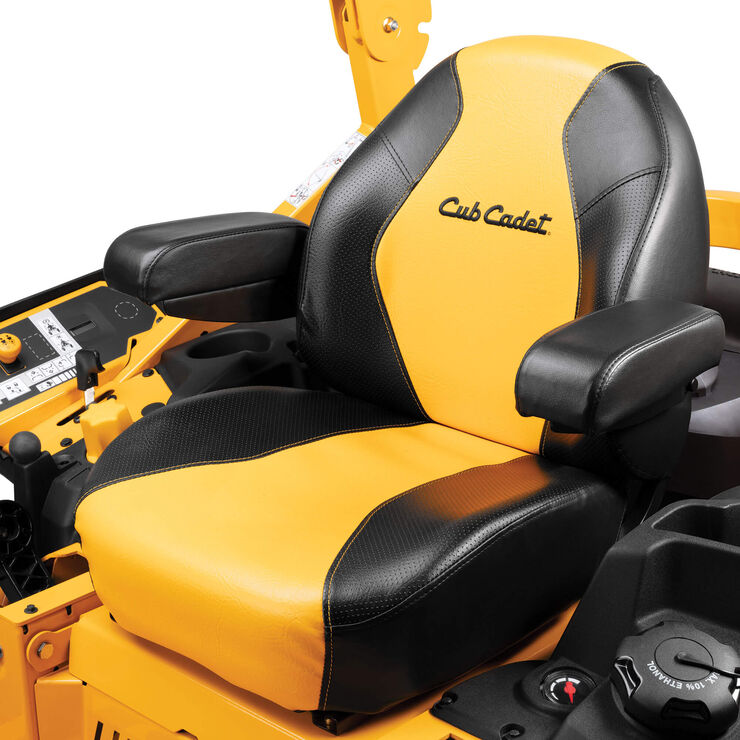

- Seat Type: 20″ high back
- Armrests: Yes
- Seat Adjustment: Lever
Wheels
- Rear Tires: 22″x 12″-12″
- Front Tires: 13″x 6.5″-6″
- Tire Tread: Turf Master / Multi Trac
Specifications
- Series: Ultima Series™ ZTX
Additional Specifications
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlight(s): Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Lap Bar Integrated
- Model Number: 47ASAAA6010
Warranty
- Warranty: 4-year 800 hours
- Frame Warranty: Lifetime limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: 4-year 800 hours
Disclaimers
Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
