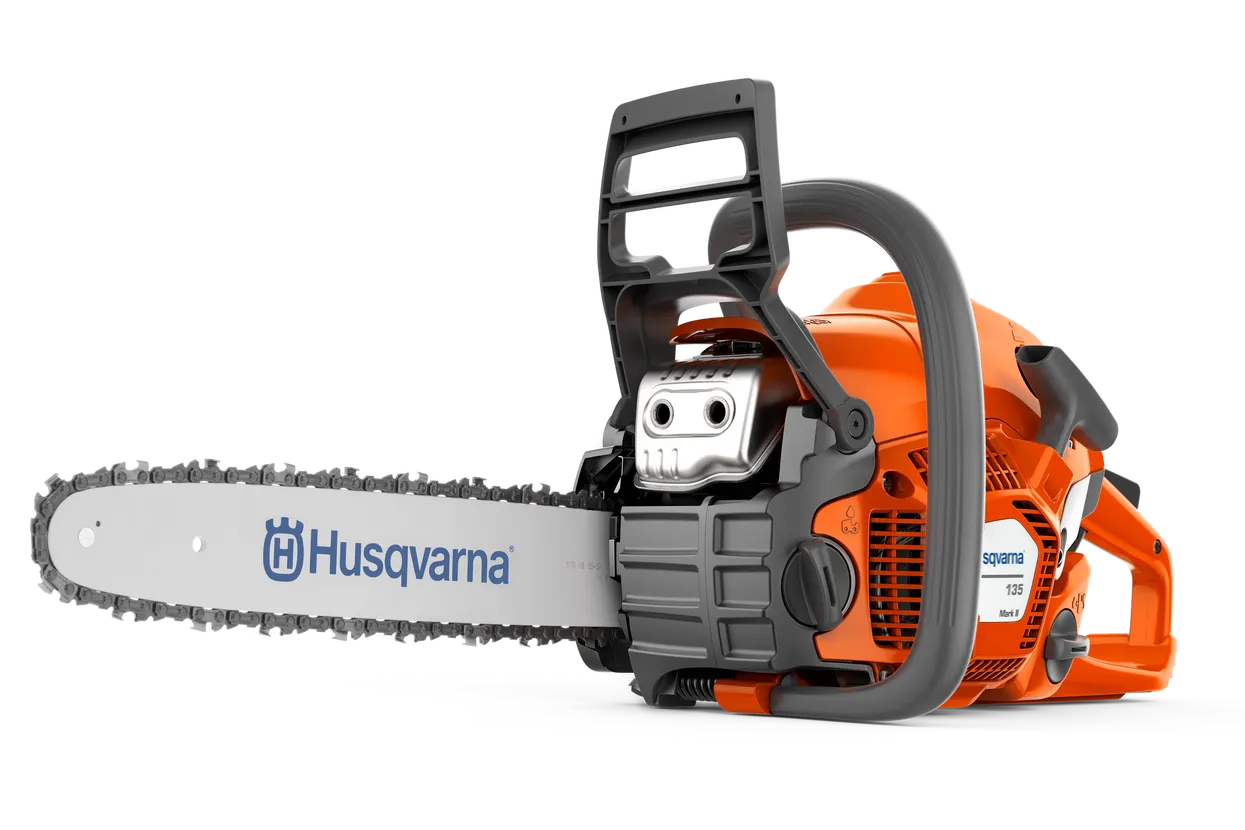

HUSQVARNA 135 Mark II Chainsaw

Specifications

Engine

Chain speed at max power: 55 fts
Cylinder displacement: 38 cm³
Output shaft power: 2.1 hp
Torque, max.: 1.84 Nm
Torque, max. at rpm: 8,000 rpm
Clutch engagement speed (±120): 4,000 rpm
Electrode gap: 0.022 in
Idling speed: 3,000 rpm
Ignition module air gap: 0.012 in
Maximum power speed: 9,000 rpm
Oil pump type: Automatic
Spark plug: NGK BPMR7A

Equipment

Recommended bar length, min: 14 in
Pitch: 3/8″ mini
Recommended bar length, max: 16 in
Chain type: S93G
Bar length: 40 cm
Bar length (inch): 16 in
Sprocket type: Spur 6
Gauge: .050″

Dimensions

Weight (excl. cutting equipment): 10.36 lbs

Sound and Noise

Sound pressure level at operator’s ear (LpA): 102 dB(A)
Sound power level, guaranteed (LWA): 116 dB(A)
Sound power level, measured: 113 dB(A)

Vibration

Equivalent vibration level (ahv, eq) rear handle: 5.5 m/s²
Equivalent vibration level (ahv, eq) front handle: 3.72 m/s²

Lubricant

Oil tank volume: 0.549 US pint
Lubricant type (Engine): Husqvarna 2-stroke or equivalent at 50:1

Emission

Exhaust emissions (CO₂ EU V): 804 g/kWh
