Description
Fuel injected 60cc professional chainsaw with instant acceleration

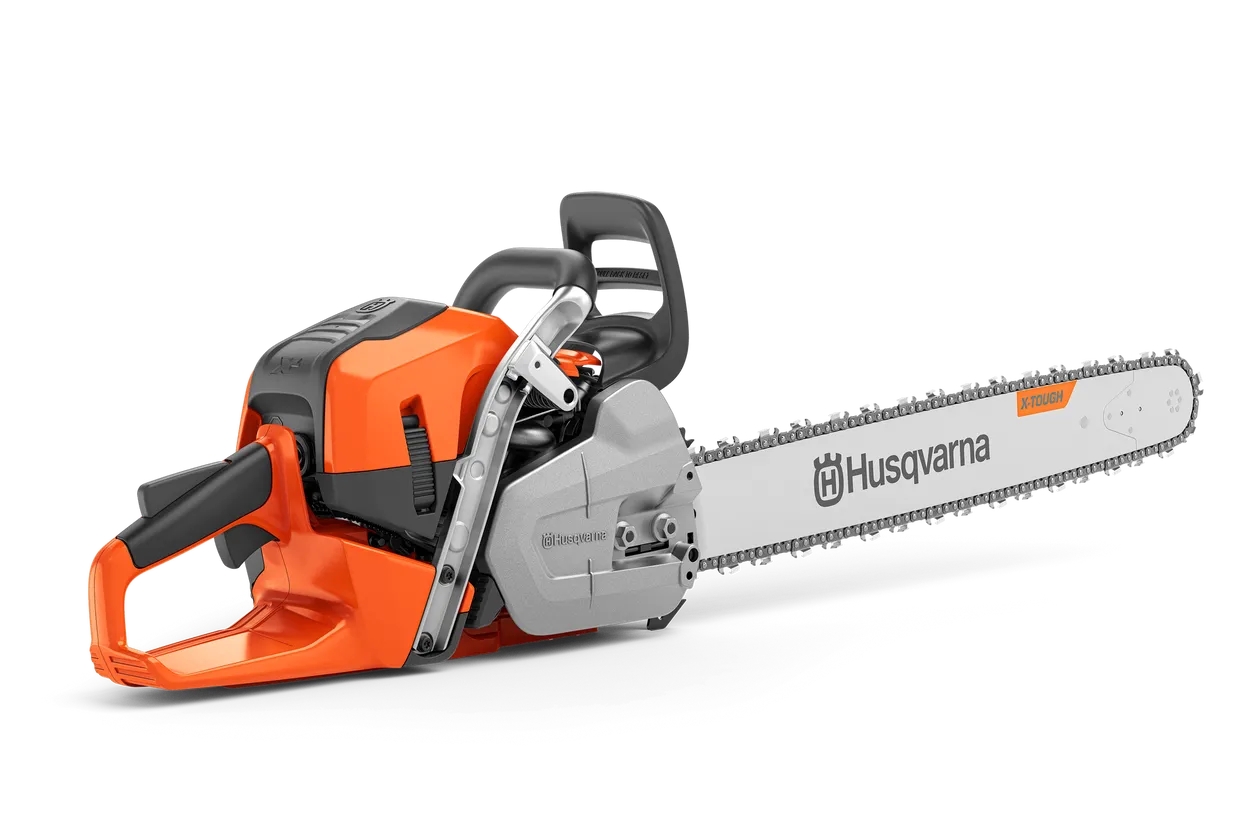

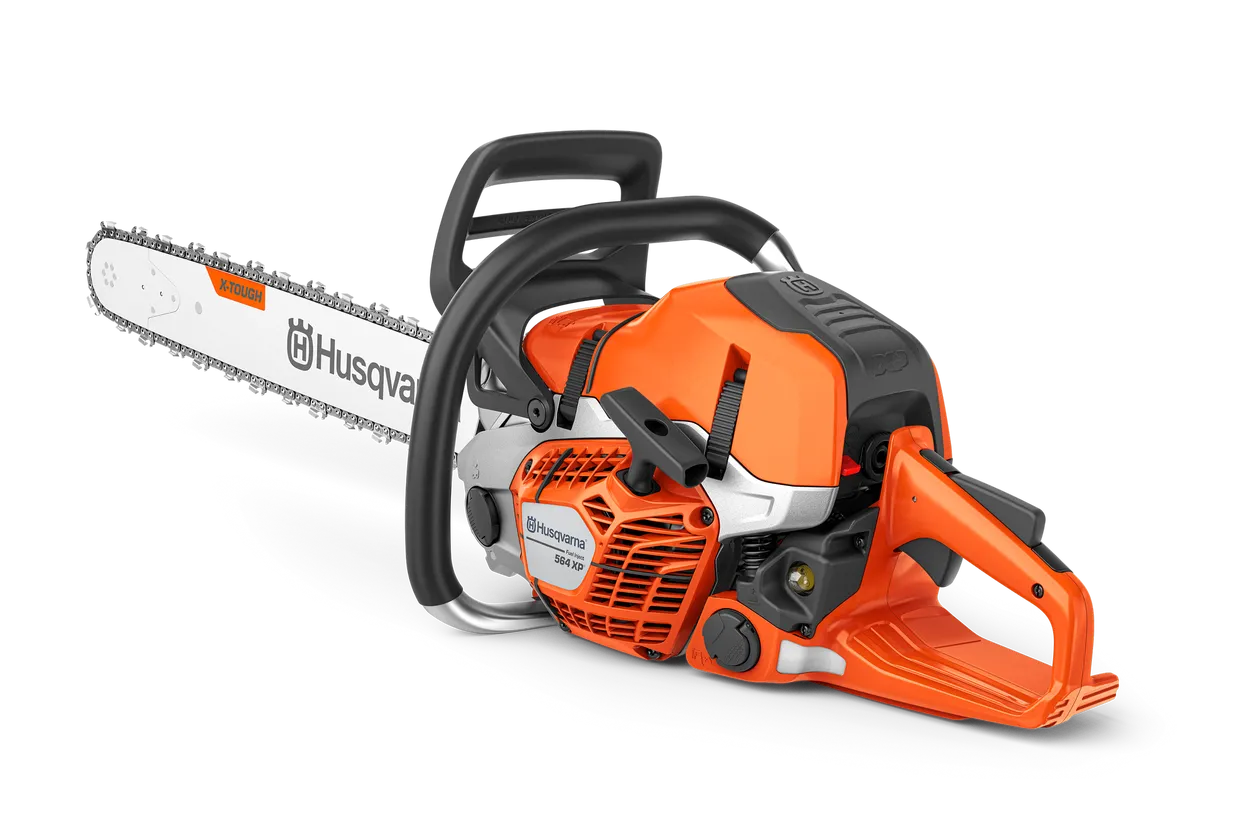

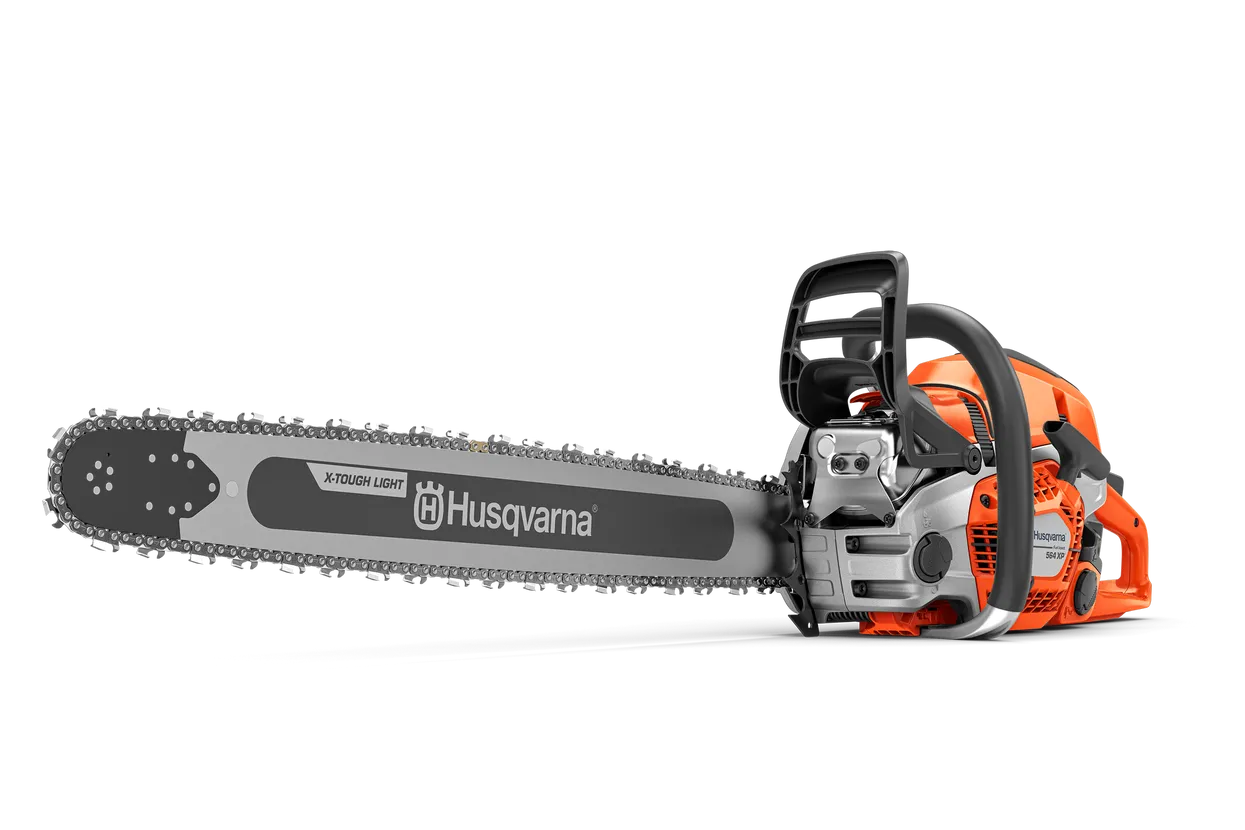

Husqvarna 564 XP is a groundbreaking 60cc chainsaw for forestry and tree care professionals seeking cutting-edge performance. Combining the size and maneuverability of a 50cc chainsaw with the power of a 70cc, it delivers an outstanding power-to-weight ratio in a compact body. Experience an innovative combination of advanced technologies, including the fuel injection system and a new engine for instant acceleration and maximized productivity throughout the workday. Furthermore, the user experience is refined with an easy starting procedure and low vibrations, reducing strain on your body.
Specifications
Engine
Chain speed at max power: 69.9 fts
Cylinder displacement: 62.4 cm³
Output shaft power: 5.4 hp
Torque, max.: 3.9 Nm
Torque, max. at rpm: 8,400 rpm
Clutch engagement speed (±120): 4,200 rpm
Electrode gap: 0.02 in
Idling speed: 2,800 rpm
Ignition module air gap: 0.01 in
Maximum power speed: 10,200 rpm
Oil pump type: Adjustable flow
Spark plug: NGK CMR6H
Equipment
Bar length: 60 cm
Bar length (inch): 24 in
Recommended bar length, min: 15 in
Recommended bar length, max: 28 in
Pitch: 3/8″
Chain type: C85
Sprocket type: Rim 7
Gauge: .058″
Dimensions
Weight (excl. cutting equipment): 12.8 lbs
Sound and Noise
Sound pressure level at operator’s ear (LpA): 106 dB(A)
Sound power level, guaranteed (LWA): 119 dB(A)
Sound power level, measured: 117 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle: 3 m/s²
Equivalent vibration level (ahv, eq) front handle: 3.3 m/s²
Lubricant
Oil tank volume: 0.68 US pint
Lubricant type (engine): Husqvarna 2-stroke or equivalent at 50:1
Emission
Exhaust emissions (CO₂ EU V): 762 g/kWh
