$5,749.00

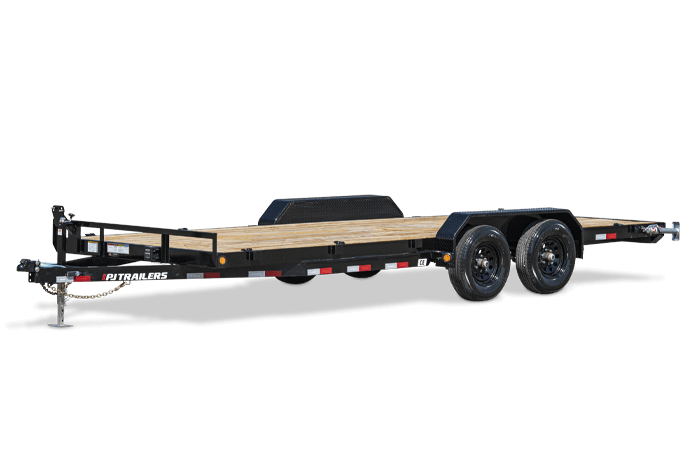

PJ Trailer 5in CE Channel Equipment-20ft

Deck Width

83"

Deck Lengths

20'

GVWR

9,899 lbs

Load Capacity

7,249—7,579 lbs

**Prices are subject to change without warning. For the most up to date pricing contact the store. Final price reflected at check out.

Description

A versatile workhorse that’s equipped with the features needed to overcome the challenges ahead, the 5″ Channel Equipment Trailer (CE) is ready for any and all of your light- to medium-duty hauling tasks.

The CE is constructed for long-term durability, designed to stand strong haul after haul and day after day. Plus, its low-profile, slide-in ramps, and rear support jacks make loading and unloading a smoother experience, and it’s outfitted with a front bump rail and attachment points to keep whatever you’re hauling safe and secure during transportation.

What Drives You, Drives Us™

Specifications

Axles [52BS] (2) 5,200# Electric / Spring

Available Options

[62BS] (2) 5,200# Electric / Spring With Upgrade to 235/80 R16 on 52k Axles[62CS] (2) 5,200# One Electric / Spring With Upgrade to 235/80 R16 on 52k Axles

Suspension 5 Leaf Double Eye Suspension
Tongue 5″ Channel Tongue
Coupler [J] BP 2-5/16″ Adjustable (14,000 lb.)

Available Options

[J] BP 2-5/16″ Adjustable (14,000 lb.)[P] 3″ Pintle Eye – Channel-Mount (20,000 lb.)

Safety Chains 5/16″ Grade 70 Safety Chain w/Clevis hook (2 each)
Jack Top Wind Drop Leg Jack (8,000 lb.)

Available Options

[-JA09] Upgrade to Single 10k Jack

Frame 5″ Channel Frame

Available Options

[-CM12] 12″ OC Crossmembers

Cross-Members 3” Channel Crossmembers 16” oc
Bump Rail Front Bump Rail
Floor 2″ Treated Pine Lumber Deck

Available Options

[-SF03] 11ga DP Steel Floor on Dovetail[-BWOD] Blackwood Pro Outer Deck[-BWFD] Blackwood Pro Full Deck[-FLRO] Rough Oak Floor[-FLNF] No Flooring[-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16″ OC

Fenders 9″ x 72″ Treadplate Removable Steel Fenders

Available Options

[-FE01] 1/4″ DP HD Weld on Fenders Tandem Axle[-FE03] Aluminum Fenders[-FE04] Weld on Fenders

Ramps 5′ Slide-In Ramps w/ Holders
Stake Pockets 24″ Stake Pocket Spacing

Available Options

[-2SPF] 2 Stake Pockets In Front of Trailer

Wiring All-Weather Wiring Harness (7-way RV)
Tires ST225/75R15 Radial Tires 8 ply (2,540 lbs.)
Paint Color [K] Primer + Black Powder Coat

Available Options

View Color Options

[1] Primer + Red Powder Coat[3] Primer + White Powder Coat[5] Primer + Tractor Orange Powder Coat[6] Primer + Grey Powder Coat[8] Primer + Desert Tan Powder Coat[B] Primer + Jet Blue Coat (NEW!)[J] Primer + Industrial Green Coat (NEW!)[Y] Primer + Industrial Yellow Coat (NEW!)[G] Primer + Slime Green Coat (NEW!)

Tie-Downs (6) Flushmount D-rings

Available Options

[-DR01] 1 Extra Pair D-Rings[-DR21] 1 Extra Pair Flushmount D-Rings[-SRRR] 2″ Rubrail

Breakaway System Electric Breakaway System w/ Charger
Battery

Available Options

[-BYSL] Solar Battery Charger

Storage

Available Options

[-TB03] Full Size Divided Toolbox Upgrade[-TB05] Front Toolbox

Cargo Winch

Available Options

[-WN01] Plate for Winch (BP Only)[-WN03] Winch Plate w/ Welded Receiver Hitch[-WN12] Winch 12.5K w/Plate & Battery[-WN95] Winch 10k w/ Plate & Battery[-WNRR] Roller on Rear of Deck for Winch Cable

Tail [S] Straight Deck w/ Rear Slide-in Ramps

Available Options

[A] 2′ Dovetail w/ 2 Fold-up Ramps[C] Straight Deck w/ 2 Fold-up Ramps[K] 2′ Dovetail w/ Split Heavy Duty Gate[N] 2′ Dovetail w/ 5′ Rear Slide-in Ramps

Other Options

Available Options

[-RATL] Ramp Gate Transition Lip

Spec Sheet

Download Spec Sheet
