$9,400.00
**Prices are subject to change without warning. For the most up to date pricing contact the store. Final price reflected at check out.

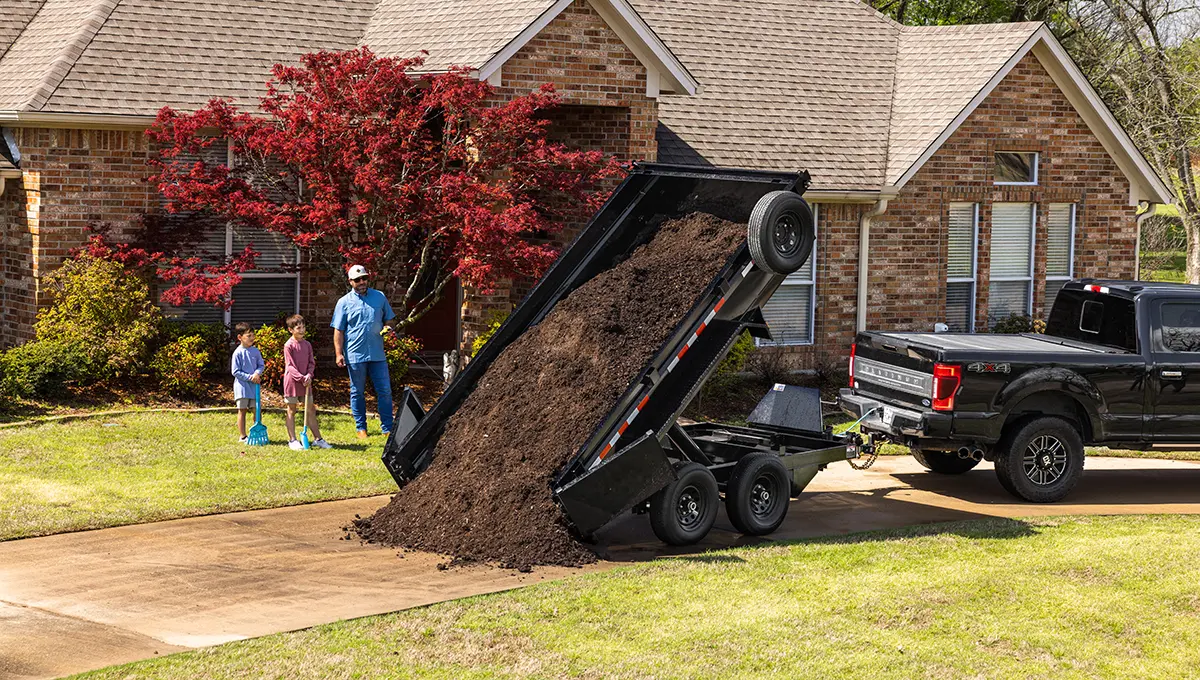

Equipped with a straight ram hydraulic lifting system, the D3 helps you haul and dump mulch, dirt, and gravel with ease. Whatever you encounter, the D3 has the strength and durability you’ll need—on the job, at home, or even the farm. Your back will thank you.
What Drives You, Drives Us™
| Axles | [52BS] (2) 5,200# Electric / Spring
Available Options |
|---|---|
| Suspension | 6-Leaf Slipper Spring Suspension |
| Tongue | 5″ Channel Tongue |
| Coupler | [J] BP 2-5/16″ Adjustable- Demco EZ-Latch
Available Options |
| Jack | Top Wind Drop Leg Jack (8,000 lb.)
Available Options |
| Frame | 5″ Channel Frame
Available Options |
| Cross-Members | 3″ Channel Crossmembers on 16″ Centers |
| Floor | 10ga. Steel Bed |
| Fenders | 1/8″ Treadplate Steel Fenders |
| Ramps |
Available Options |
| Stake Pockets | Stake Pockets along both sides (Quantity depends on length) |
| Wiring | All-Weather Wiring Harness (7-way RV) |
| Tires | ST225/75R15 Radial Tires 8 ply (2,540 lbs.) |
| Paint Color | [K] Primer + Black Powder Coat
Available Options |
| Tie-Downs |
Available Options |
| Breakaway System | Electric Breakaway System w/ Charger |
| Battery | 12V Deep Cycle Battery
Available Options |
| Charging System | 110V Integrated Trickle Charger |
| Hydraulics | Hydraulic – Power Up/Power Down & Gravity Down |
| Sides | 20″ 10ga. UniWall Steel Sides
Available Options |
| Storage |
Available Options |
| Tarp | Mounting Brackets for Roll-up Tarp
Available Options |
| Cargo Winch |
Available Options |
| Tail | [S] Split Gate
Available Options |
| Dump Gate | Barn Door Gate |
| Lift Cylinder | 4″ x 30″ Single Push Cylinder |
| Other Options |
Available Options |
