TYM T25 Tractor Newark
TYM T25 Compact Tractor - Image 2

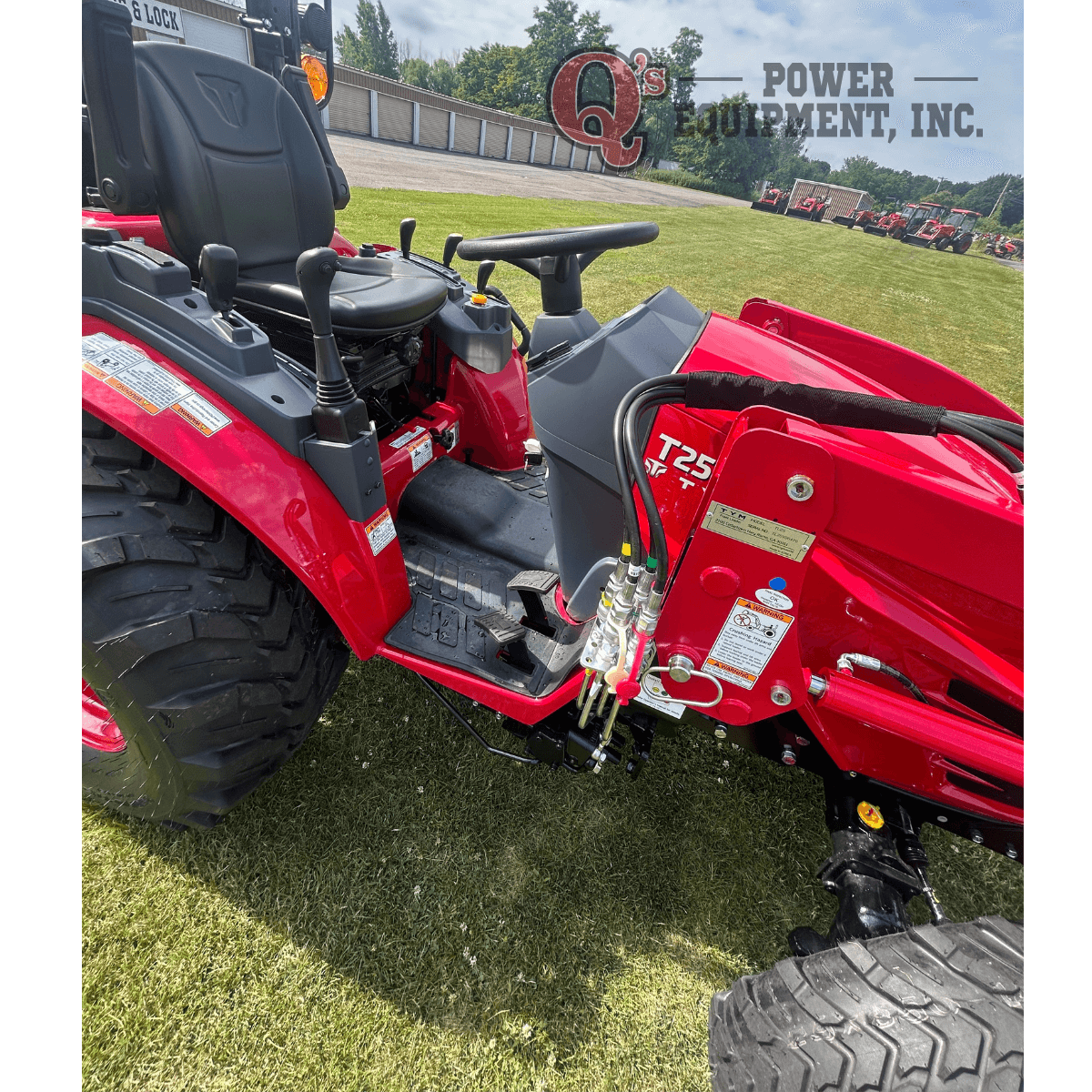

TYM T25 compact tractor

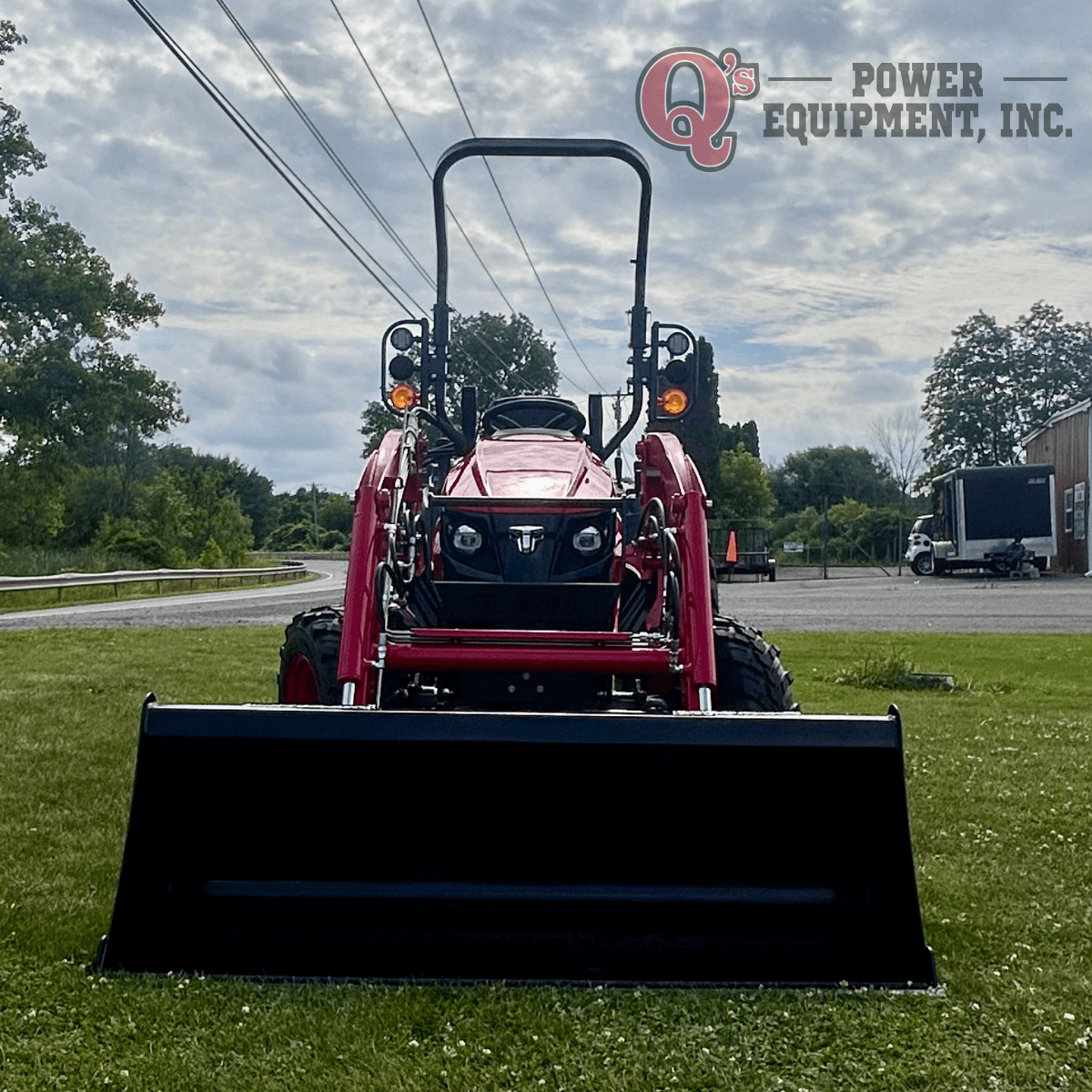

TYM T25 side profile positioned in a field with loader attachment
Front three-quarter view of TYM T25 ready for storage with ROPS visible
Front three-quarter view of TYM T25 ready for storage with ROPS visible

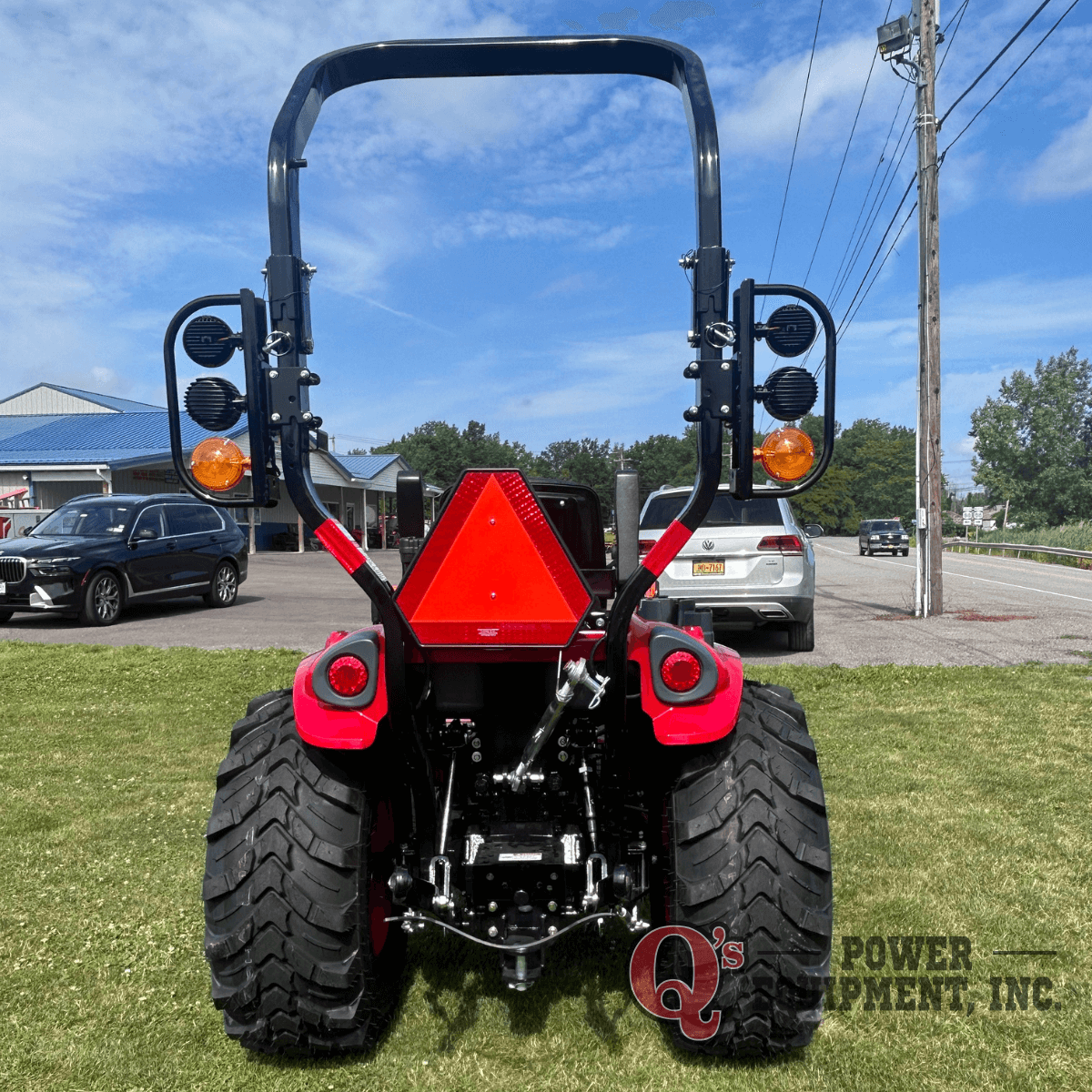

TYM-T25-Back-View

TYM T25 Compact Tractor

$19,899.00

$ 19899

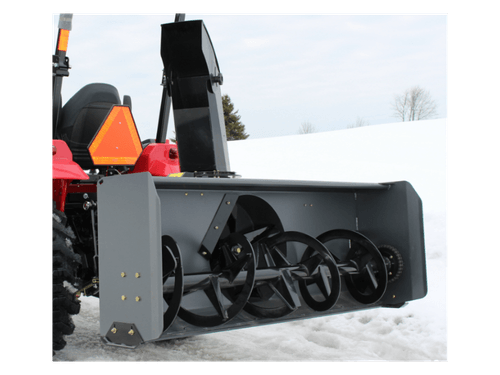

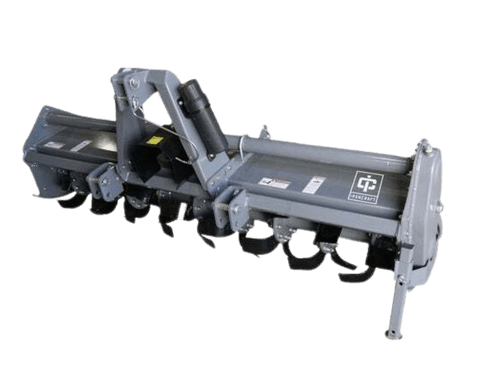

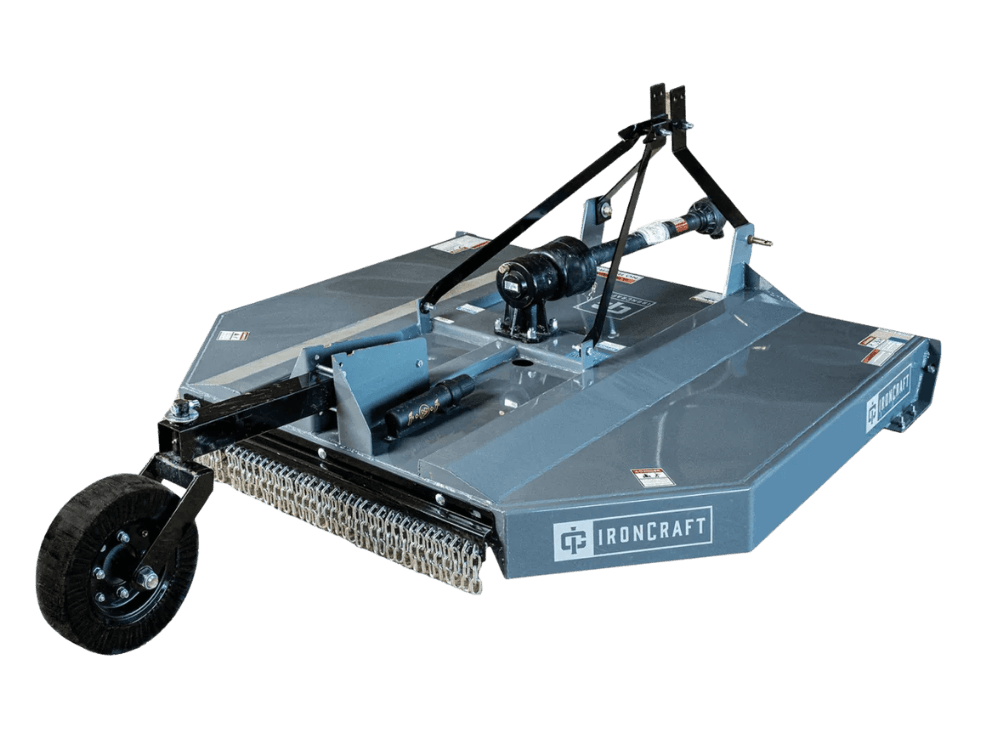

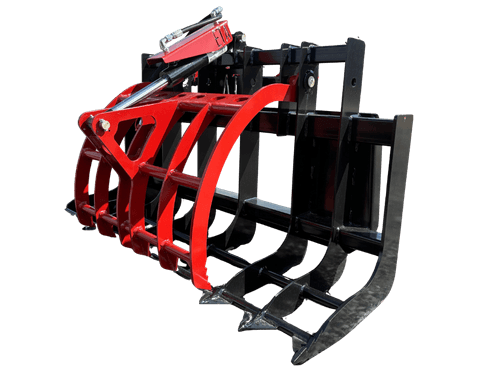

Choose Attachments
Total Price:   $
0.00
FINANCING

Loaders included

**Prices are subject to change without warning. For the most up to date pricing contact the store. Final price reflected at check out.

Request Quote
Financing

Description

Description:

The T25 tractor is proof that great things can indeed come in small packages. Offering enhanced power without sacrificing maneuverability, it’s equipped with a powerful engine and ergonomic operator controls, ensuring both performance and comfort.

Specifications:

ENGINE

  • Manufacturer: Yanmar 3TNV80F
  • Engine Power: 24.7 hp | 18.4 kW
  • Rated Engine Speed: 3000 rpm
  • Displacement: 77.3 cu. in. | 1267 cc

TRANSMISSION

  • No. of Speeds: Infinite 2-Range

HITCH

  • Lift Capacity: 1551.2 lb | 703.6 kg

PTO

  • Rear PTO Speed: 540 rpm

FUEL

  • Fuel Tank Capacity: 6.6 gal | 25 L

DIMENSIONS

  • Overall Length (with 3-point hitch): 102.8 in. | 2610 mm
  • Overall Width: 50 in. | 1270 mm
  • Wheelbase: 61 in. | 1550 mm
  • Height to Top of ROPS: 91.3 in. | 2320 mm
  • Minimum Ground Clearance: 10.2 in. | 260 mm

WEIGHT

  • Weight (with ROPS): 2046 lb | 928 kg

TIRES

  • R1 Agricultural – Front: 6-12 4PR
  • R1 Agricultural – Rear: 9.5-20 6PR

Specifications

Key Specifications

  • Horsepower: 24.7HP
  • Loader Lift Capacity: 1380LBS.

Specifications

ENGINE
Engine manufacturer Yanmar 3TNV80F
Type Natural Aspiration
Gross engine power 24.7 hp | 18.4 kW
PTO power 18.3 hp | 13.6 kW
Rated engine speed 3000 rpm
No. of cylinders 3
Displacement 77.3 cu. in.
Air cleaner Single Dry
Alternator 12V, 40A
Fuel system IDI
POWERTRAIN
Transmission type Synchro-Shuttle/HST
No. of speeds Infinite 2-Range
Max. traveling speed 13.7 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch N/A
HYDRAULIC SYSTEM
Pump type Single Gear Pump
Implement flow 4.18 gpm
Steering flow 2.77 gpm
Total flow 6.95 gpm
Category, 3-point hitch I
Hitch lift capacity 1534 lb
Hitch lift capacity at 24 inches behind link ends 1102 lb
Lift control type Position

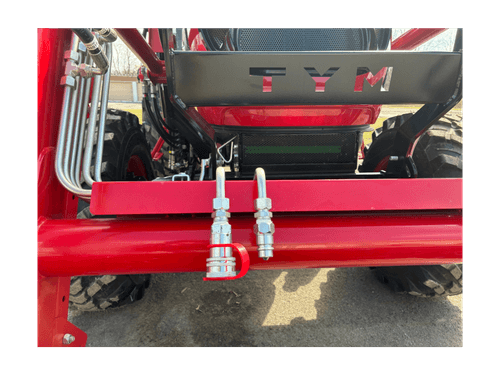

No. of standard remote valves Optional (1)
PTO
PTO type Independent
PTO control Electric/Hydro
PTO rear 540 rpm
CAPACITIES
Fuel tank 6.6 gal
Coolant 3.8 qt
Crankcase 2.9 qt
Transmission/Hydraulics system 5.8 gal
Front axle 4.7 qt
DIMENSIONS & WEIGHTS
Overall length with 3-point hitch 107.8 in.
Overall width 52.8 in.
Wheelbase 61 in.
Height to top of ROPS 89.8 in.
Min. ground clearance 7.71 in.
Min. turn radius with brakes 102.4 in.
Min. turn radius without brakes 109.5 in.
Weight with ROPS 1881 lb
Weight with cab 2399 lb
STANDARD TIRES
R3 Turf – Front Turf Master 23×8.50-12 NHS TL 4PR
R3 Turf – Rear Multi-Trac CS 33×12.50-16.5 NHS TL 4PR
R4 Industrial – Front Trac Chief 23×8.50-14 NHS TL 4PR
R4 Industrial – Rear Trac Chief 14-17.5 NHS TL 6PR

Products You Might Also Like

TYM Tractor - Qs Power Equipment

TYM T254 HST

Loaders included

Horsepower

23.9HP

Loader Lift Capacity

948LBS.

$18,399.00
Get Financing
Build Tractor
Build Tractor

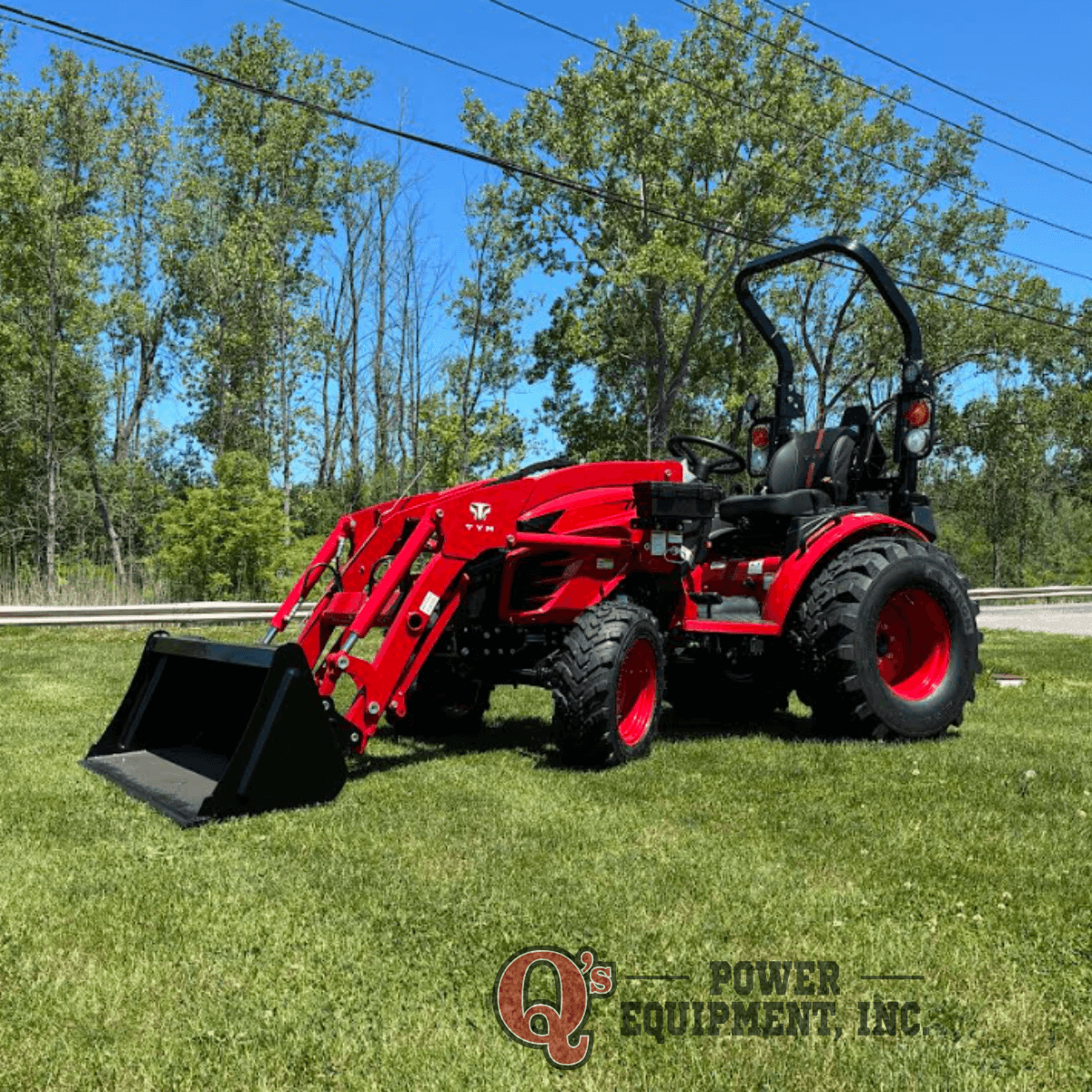

Detailed view of the TYM T2025P compact utility tractor highlighting durability and versatility
