Description

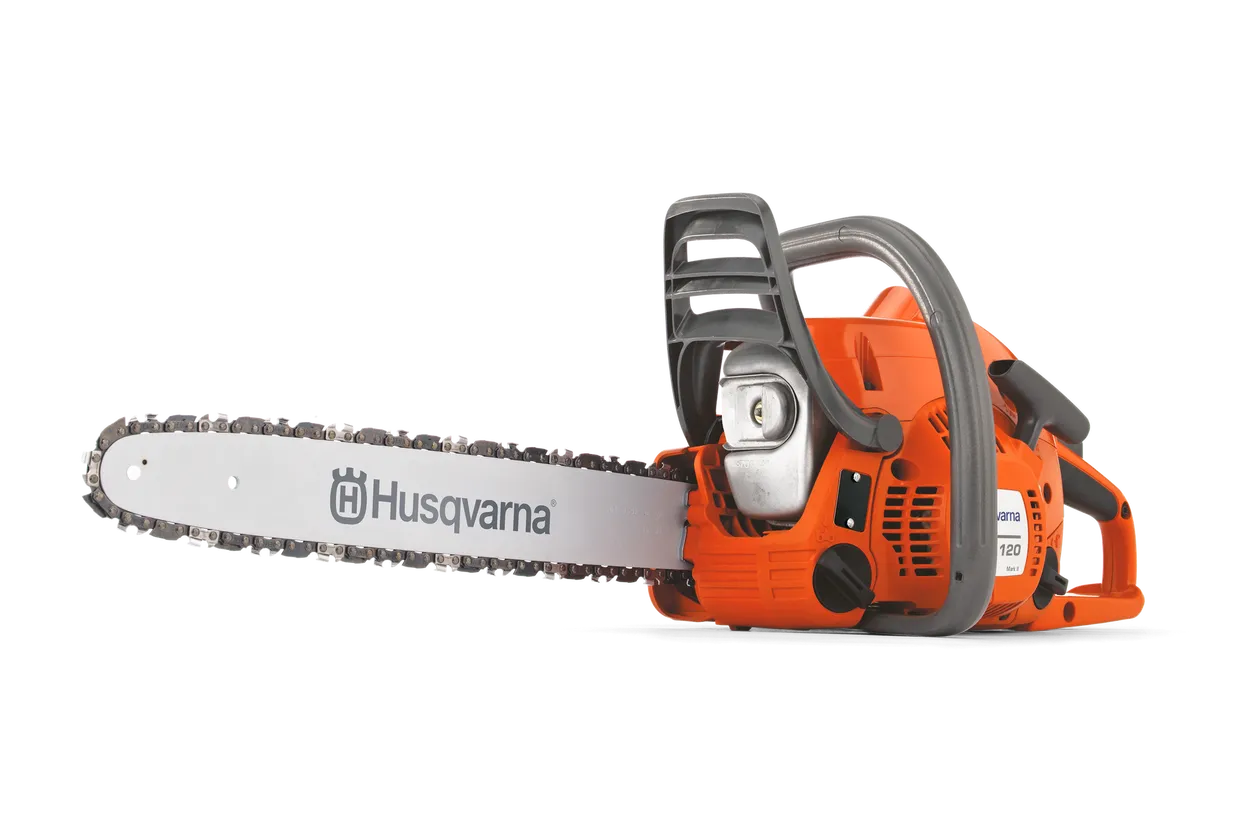

For performance without the frills, trust the Husqvarna 120. This all-round gas saw features our proprietary X-TORQ® engine to deliver superior performance, increased fuel efficiency and low emissions. Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter. And LowVib® technology keeps this saw comfortable to use, no matter the task.
Specifications
Engine
Chain speed at max power: 55 fts
Cylinder displacement: 38 cm³
Output shaft power: 1.88 hp
Torque, max.: 1.9 Nm
Torque, max. at rpm: 7,000 rpm
Clutch engagement speed (±120): 4,000 rpm
Electrode gap: 0.022 in
Idling speed: 3,000 rpm
Ignition module air gap: 0.01 in
Maximum power speed: 9,000 rpm
Oil pump type: Automatic
Spark plug: Husqvarna HQT-1
Equipment
Recommended bar length, min: 14 in
Pitch: 3/8″ mini
Recommended bar length, max: 18 in
Chain type: S93G
Bar length: 40 cm
Bar length (inch): 16 in
Sprocket type: Rim 6
Gauge: .050″
Dimensions
Weight (excl. cutting equipment): 10.7 lbs
Sound and Noise
Sound pressure level at operator’s ear (LpA): 95 dB(A)
Sound power level, guaranteed (LWA): 116 dB(A)
Sound power level, measured: 113 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle: 6.7 m/s²
Equivalent vibration level (ahv, eq) front handle: 5.3 m/s²
Lubricant
Oil tank volume: 0.32 US pint
Lubricant type (Engine): Husqvarna 2-stroke or equivalent at 50:1
Emission
Exhaust emissions (CO₂ EU V): 957 g/kWh
