$7,248.00

PJ Trailers B5-5inch Channel Buggy Hauler

Deck Width

102"

Deck Lengths

16' – 22'

GVWR

10,000 lbs

Load Capacity

7,350—7,729 lbs

**Prices are subject to change without warning. For the most up to date pricing contact the store. Final price reflected at check out.

Description

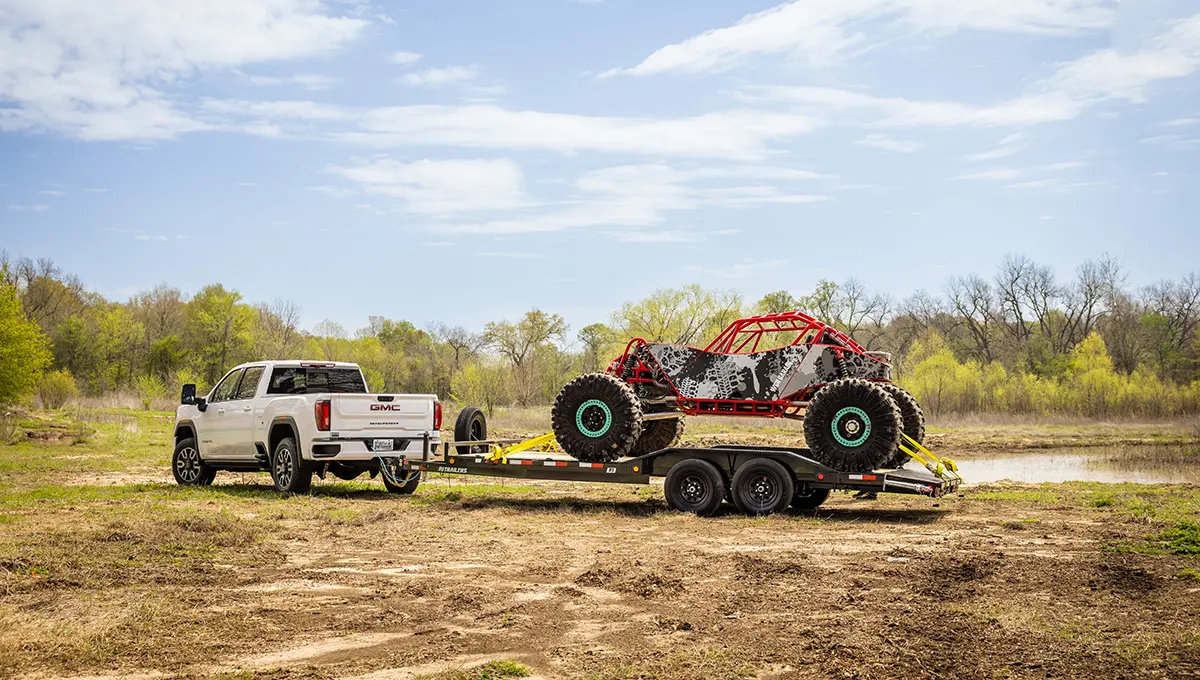

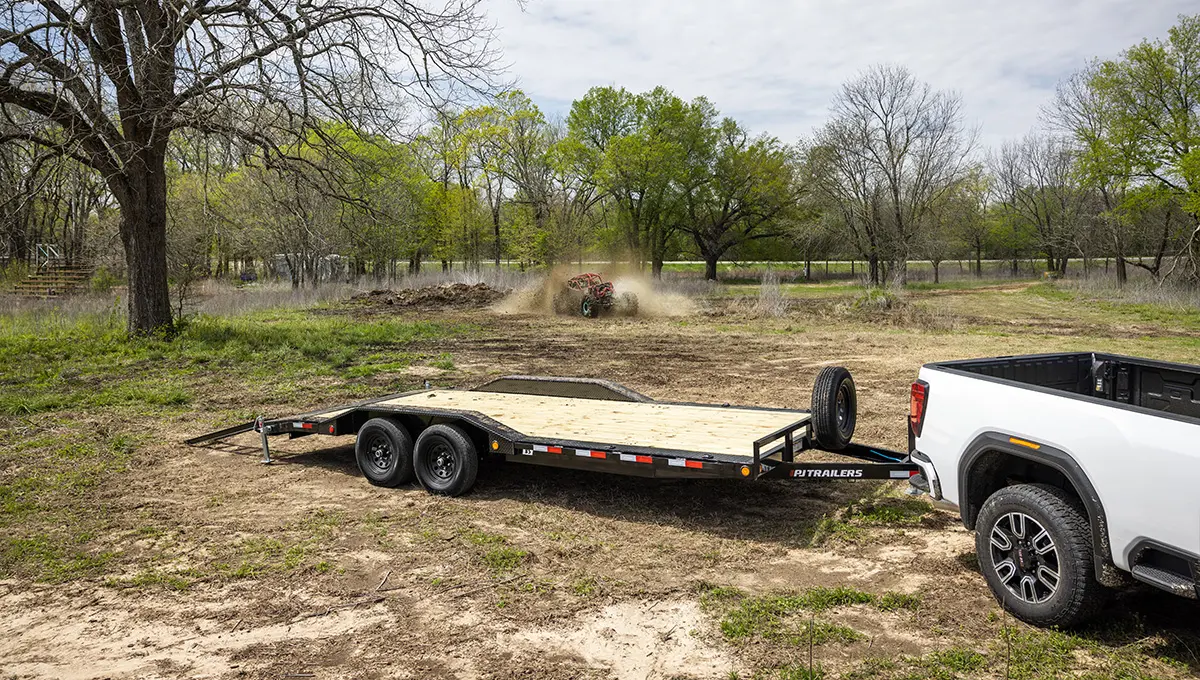

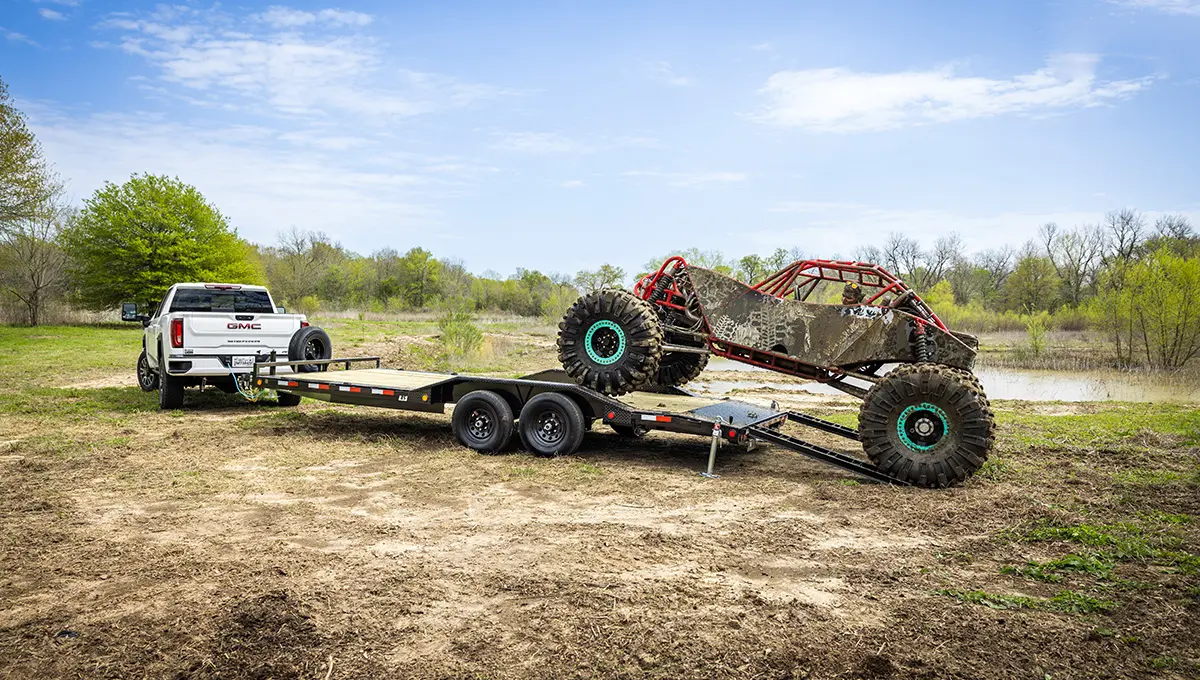

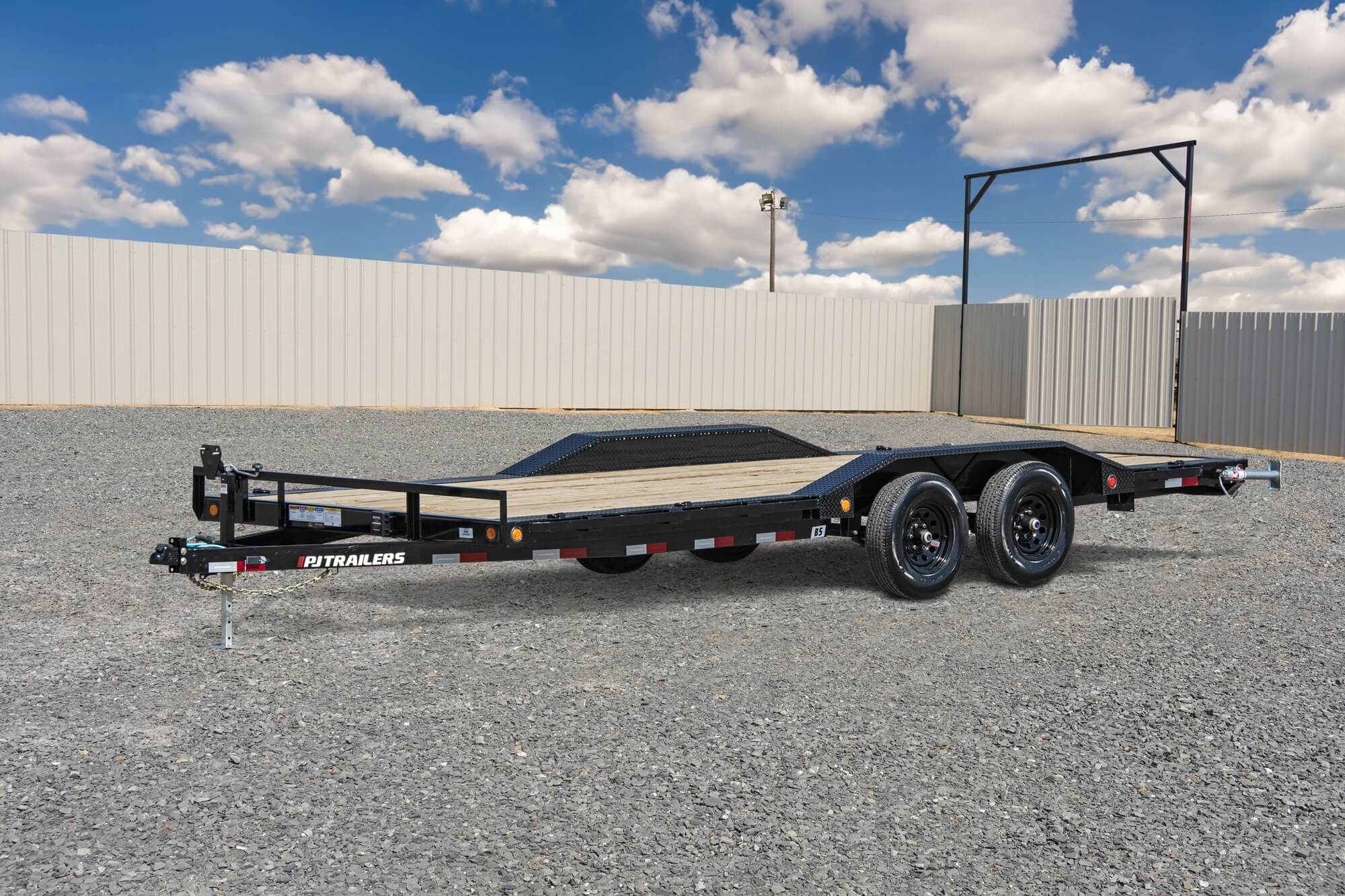

It’s time to go wide with the 5″ Channel Buggy Hauler Trailer (B5), sporting a full 102’’ wide deck that’s ready to haul your dreams.

The B5 is built to handle tough conditions and help you get through them. It features diamond-plated steel fenders that you can drive over when unloading and loading extra-wide vehicles. Designed with a 5″ channel frame and tongue, the B5 also includes d-rings, a rub rail with pipe spools, stake pockets, and a front bump rail. These features give you the versatility and durability you need to tackle whatever challenges come your way on the road.

What Drives You, Drives Us™

Specifications

Axles
[52BS] (2) 5,200# Electric / Spring
Available Options
  • [52CS] (2) 5,200# One Electric / Spring
Suspension 4-Leaf Double-Eye Spring Suspension
Tongue 5″ Channel Tongue
Coupler
[J] BP 2-5/16″ Adjustable- Demco EZ-Latch
Available Options
  • [J] BP 2-5/16″ Adjustable
  • [P] 3″ Pintle Eye – Channel-Mount (14,000 lb.)
Safety Chains 5/16″ Grade 30 Safety Chain w/Clevis hook (2 each)
Jack
Top Wind Drop Leg Jack (8,000 lb.)
Available Options
  • [-JA09] Upgrade to Single 10k Jack
  • [-JA13] Rear Trailer Support Jacks
  • [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame
5″ Channel Frame
Available Options
  • [-CM12] 12″ OC Crossmembers
Cross-Members 3” Channel Crossmembers 16” oc
Floor
2″ Treated Pine Lumber Deck
Available Options
  • [-SF03] 11ga DP Steel Floor on Dovetail
  • [-BWOD] Blackwood Pro Outer Deck
  • [-BWFD] Blackwood Pro Full Deck
  • [-FLRO] Rough Oak Floor
  • [-FLNF] No Flooring
  • [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16″ OC
Fenders 9″ Drive-over 1/4″ Diamond Plate Steel Fenders

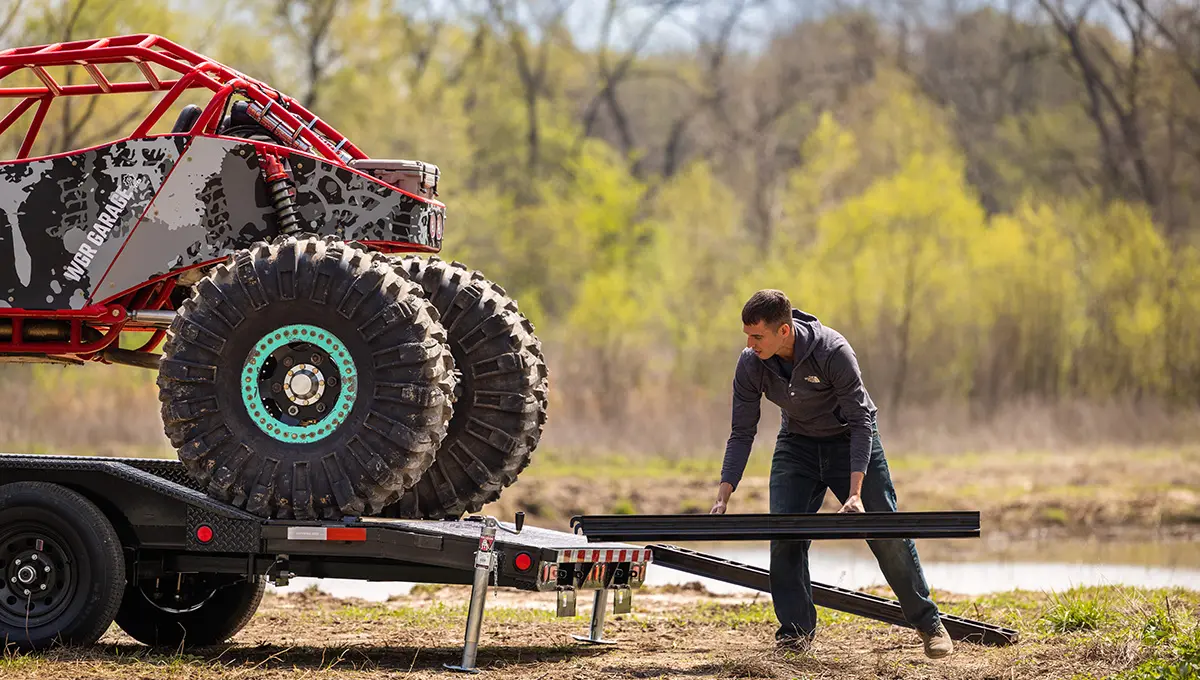

Ramps 5′ Slide-In Ramps w/ Holders
Stake Pockets
24″ Stake Pocket Spacing
Available Options
  • [-2SPF] 2 Stake Pockets In Front of Trailer
Lights
Available Options
  • [-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring All-Weather Wiring Harness (7-way RV)
Paint Color
[K] Primer + Black Powder Coat
Available Options
  • View Color Options
  • [1] Primer + Red Powder Coat
  • [3] Primer + White Powder Coat
  • [5] Primer + Tractor Orange Powder Coat
  • [6] Primer + Grey Powder Coat
  • [8] Primer + Desert Tan Powder Coat
  • [B] Primer + Jet Blue Coat (NEW!)
  • [J] Primer + Industrial Green Coat (NEW!)
  • [Y] Primer + Industrial Yellow Coat (NEW!)
  • [G] Primer + Slime Green Coat (NEW!)
Tail
[S] Straight Deck w/ Rear Slide-in Ramps
Available Options
  • [A] 2′ Dovetail w/ 2 Fold-up Ramps
  • [N] 2′ Dovetail w/ 5′ Rear Slide-in Ramps
