$14,999.00
**Prices are subject to change without warning. For the most up to date pricing contact the store. Final price reflected at check out.

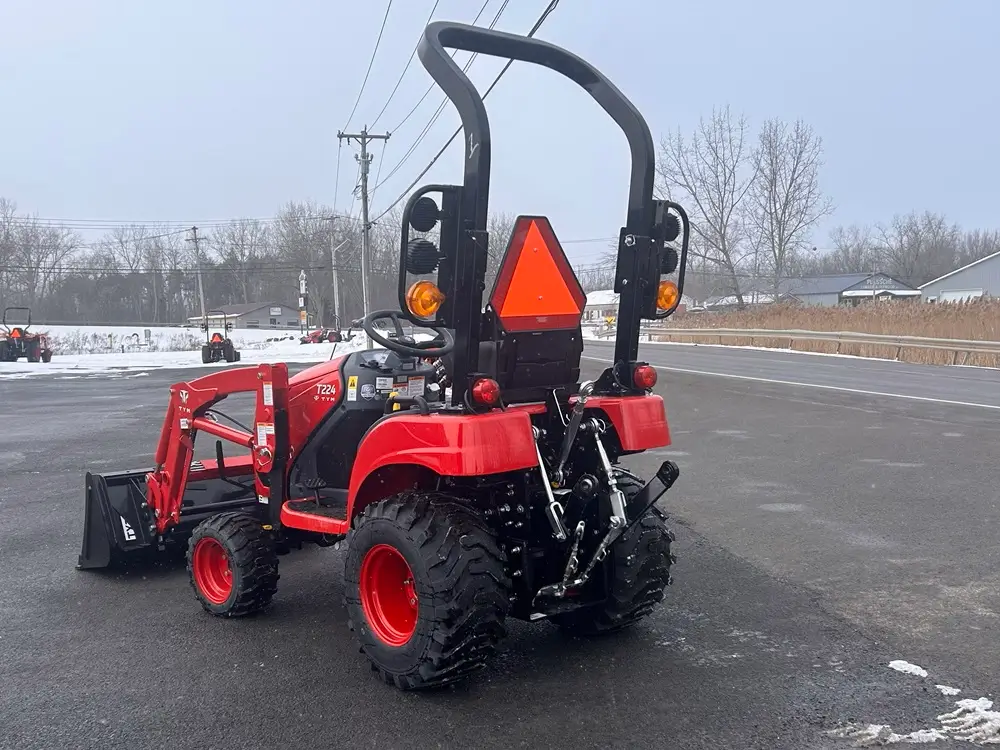

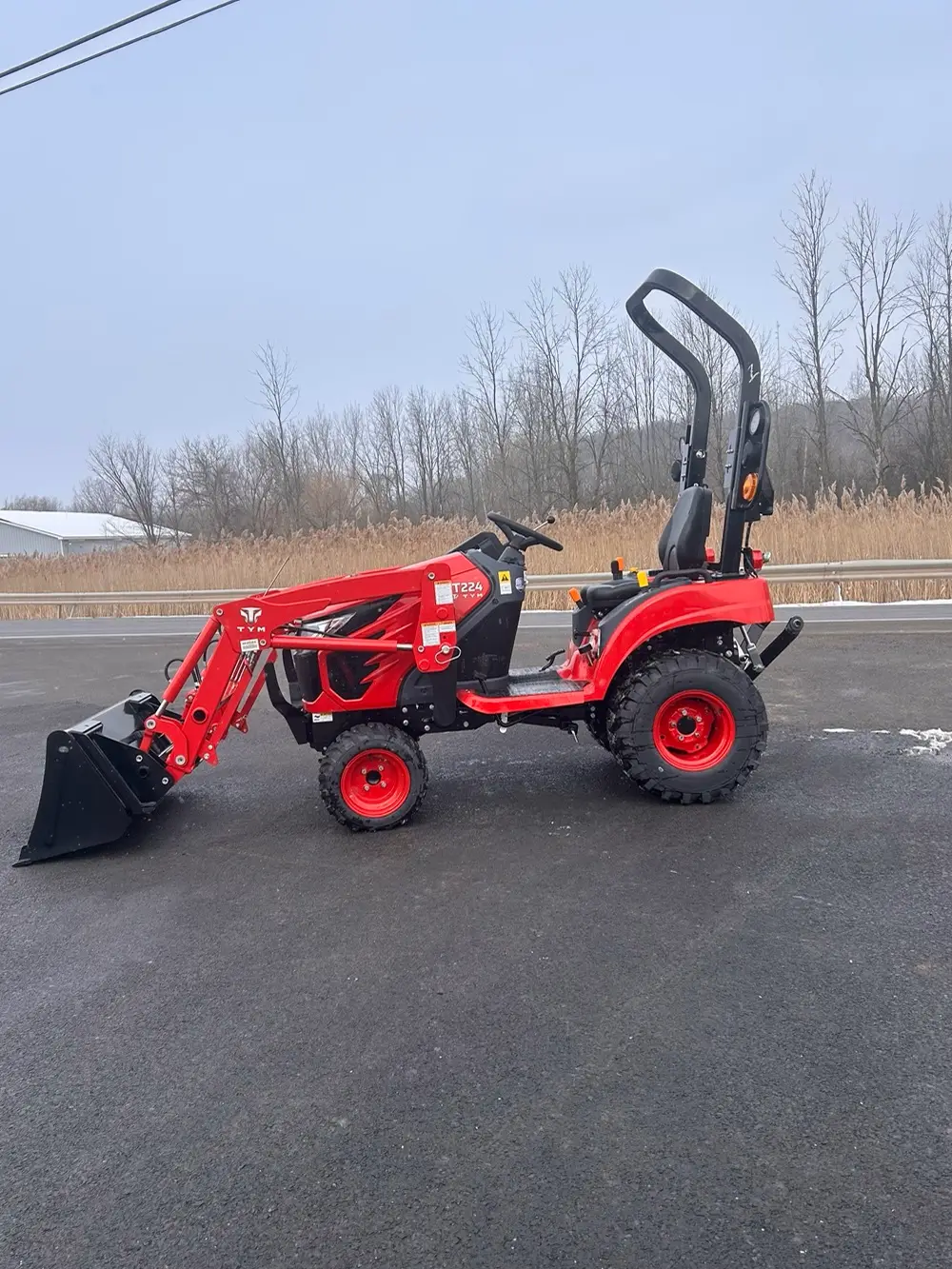

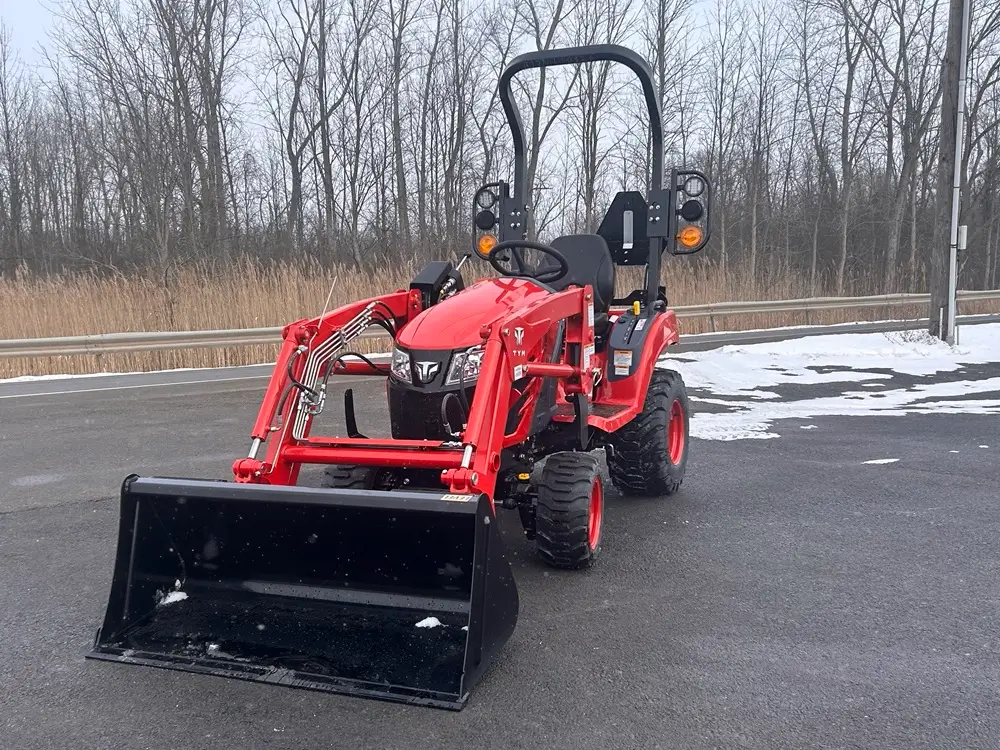

Perform the tasks fit for a full-size tractor while enjoying the agility and ease of use of a riding mower. With its unmatched versatility, the T224 embodies the essence of TYM Series 1 tractors as an indispensable groundskeeper for every property.
w/loader
|
ENGINE
|
|
|---|---|
| Engine manufacturer | Yanmar 3TNV74F |
| Type | Natural Aspiration |
| Gross engine power | 21.5 hp | 16 kW |
| PTO power | 15.1 hp | 11.3 kW |
| Rated engine speed | 3200 rpm |
| No. of cylinders | 3 |
| Displacement | 60.6 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 40A |
| Fuel system | IDI |
|
POWERTRAIN
|
|
| Transmission type | HST |
| No. of speeds | 2-Range |
| Max. traveling speed | 8.4 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | N/A |
|
HYDRAULIC SYSTEM
|
|
| Pump type | Single Gear Pump |
| Implement flow | 4.17 gpm |
| Steering flow | 2.11 gpm |
| Total flow | 6.28 gpm |
| Category, 3-point hitch | I (N) |
| Hitch lift capacity | 1100 lb |
| Hitch lift capacity at 24 inches behind link ends | 679 lb |
| Lift control type | Position |
| No. of standard remote valves | Optional (1) |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
|
CAPACITIES
|
|
| Fuel tank | 6.6 gal |
| Coolant | 3.7 qt |
| Crankcase | 1.9 qt |
| Transmission/Hydraulics system | 3.6 gal |
| Front axle | 2.6 qt |
|
DIMENSIONS & WEIGHTS
|
|
| Overall length with 3-point hitch | 94.2 in. |
| Overall width | 44.5 in. |
| Wheelbase | 53.1 in. |
| Height to top of ROPS | 86.6 in. |
| Min. ground clearance | 8.3 in. |
| Min. turn radius without brakes | 86.6 in. |
| Weight with ROPS | 1472 lb |
|
STANDARD TIRES
|
|
| R3 Turf – Front | Turf Master 16×7.50-8 NHS TL 4PR |
| R3 Turf – Rear | Turf Master 24×12.00-12 NHS TL 4PR |
| R4 Industrial – Front | WT300 18×8.5-10 NHS TL 4PR |
| R4 Industrial – Rear | WT300 26×12.00-12 NHS TL 4PR |
