$26,500.00

TYM T4215H

Compact tractor blending versatility and power for unmatched results

Crafted with optimal dimensions and excellent specifications, the 4215 tractor partners with you for jobs of all sizes. It’s compact enough for the versatility you need, yet powerful enough to handle tougher jobs on and off the field.

Loaders included

**Prices are subject to change without warning. For the most up to date pricing contact the store. Final price reflected at check out.

Description

Eco-friendly TYM Tier 4 engine

Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.

Tilt steering wheel

The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

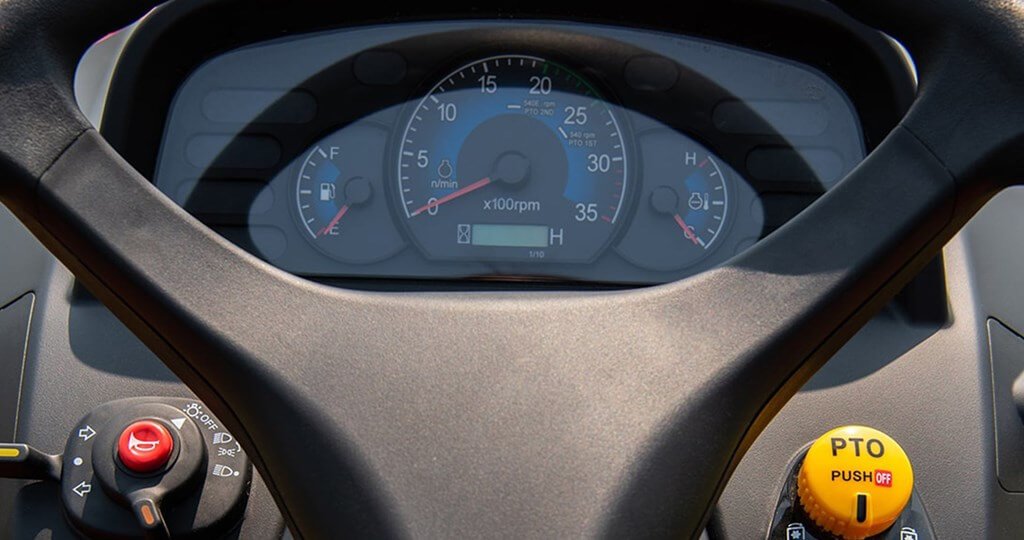

PTO on/off switch

Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.

LED work light (optional)

Full front and rear LED work lights facilitate safer operations, particularly in low visibility conditions such as rainy or dusty work environments, or during nighttime tasks.

Differential lock system and low turning angle

The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.

Water-separating fuel filter

The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.

Specifications

Engine
Engine Manufacturer TYM T2000N2
Type Natural aspiration
Engine Power 41 hp / 30.6 kW
PTO Power 36 hp / 26.9 kW
Rated Engine Speed 2,600 rpm
No. of Cylinders 4
Displacement 139.5 cu. in. / 2,287 cc
Air Cleaner Dry element
Alternator 12V, 50A
Fuel System IDI
Hydraulic System
Pump Type Dual gear pump
Implement Flow 11.4 gpm / 43.2 L/min
Steering Flow 5.2 gpm / 19.4 L/min
Total Flow 16.5 gpm / 62.6 L/min
Category, 3-Point Hitch I
Hitch Lift Capacity 3,306 lb / 1,500 kg
Hitch Lift Capacity at 24 Inches Behind Link Ends 2,425 lb / 1,100 kg
Lift Control Type Position
No. of Standard Remote Valves Loader: 2 / Rear: 0
Powertrain
Transmission Type 4215R: Synchromesh
4215H: HST
No. of Speeds 4215R: F12 × R12
4215H: 3-Range
Max. Traveling Speed 4215R: 14.4 mph / 23.1 km/h
4215H: 18.8 mph / 30.2 km/h
Brakes Wet, Multi disc
Steering Hydrostatic
Clutch Dry single plate / NA
PTO
PTO Type Independent
PTO Control Wet/Multi disc
PTO Rear 540 rpm
Capacities
Fuel Tank 7.1 gal / 27 L
Coolant 5.8 qt / 5.5 L
Crankcase 4.8 qt / 4.5 L
Transmission/Hydraulics System 4215R: 9 gal / 34 L
4215H: 9.8 gal / 37 L
Front Axle 6.8 qt / 6.4 L
Dimensions & Weights
Overall Length with 3-Point Hitch 120.9 in. / 3,071 mm
Overall Width 56.3 in. / 1,430 mm
Wheelbase 65.7 in. / 1,670 mm
Height to Top of ROPS 97.3 in. / 2,471 mm
Height to Top of Cabin –
Min. Ground Clearance 14.4 in. / 366 mm
Min. Turn Radius with Brakes (L) 98.0 in. / 2,490 mm
(R) 94.1 in. / 2,390 mm
Min. Turn Radius without Brakes (L) 124.8 in. / 3,170 mm
(R) 121.3 in. / 3,080 mm
Weight with ROPS 4215R: 3,278 lb / 1,487 kg
4215H: 3,258 lb / 1,478 kg
Weight with Cab –
Standard Tires
R1 Agricultural – Front 8-16
R1 Agricultural – Rear 12.4-24
R3 Turf – Front 27×8.5-15, 6PR
R3 Turf – Rear 41×14.00, 4PR
R4 Industrial – Front 10-16.5, 6PR
R4 Industrial – Rear 420/70-24, 6PR
