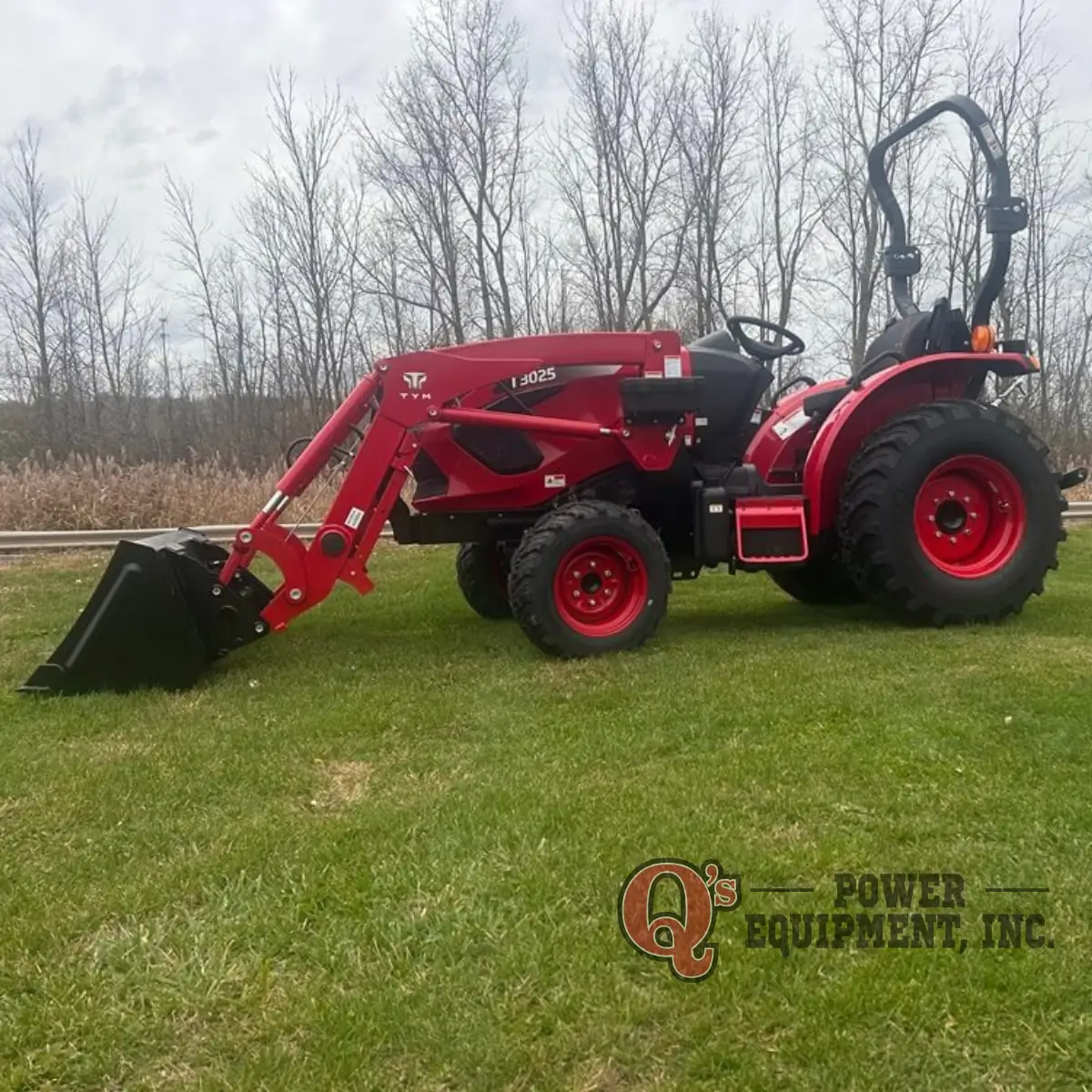

TYM T3025H

Specifications

Engine Specs

• Engine manufacturer: TYM T1700N6
• Type: Natural aspiration
• Engine power: 24 hp | 18 kW
• PTO power: 21 hp | 15.7 kW
• Rated engine speed: 2100 rpm
• No. of cylinders: 3
• Displacement: 104.5 cu. in. | 1714 cc
• Air cleaner: Dry element
• Alternator: 12V, 70A
• Fuel system: IDI

Hydraulic System Specs

• Pump type: Dual gear pump
• Implement flow: 7.7 gpm | 29.3 L/min
• Steering flow: 4.2 gpm | 15.8 L/min
• Total flow: 11.9 gpm | 45.1 L/min
• Category, 3-point hitch: I
• Hitch lift capacity: 3306 lb | 1500 kg
• Hitch lift capacity at 24 inches behind link ends: 2425 lb | 1100 kg
• Lift control type: Position
• No. of standard remote valves: Loader: 4 / Rear: 0

Powertrain Specs

• Transmission type: HST
• No. of speeds: 3-Range
• Max. traveling speed: 14.6 mph | 23.6 km/h
• Brakes: Wet, Multi disc
• Steering: Hydrostatic
• Clutch: N/A

PTO Specs

• PTO type: Independent
• PTO control: Wet/Multi disc
• PTO rear: 540 rpm

Capacities

• Fuel tank: 7.1 gal | 27 L
• Coolant: 5.3 qt | 5 L
• Crankcase: 4.5 qt | 4.3 L
• Transmission/Hydraulics system: 9.8 gal | 37 L
• Front axle: 6.8 qt | 6.4 L

Dimensions and Weights

• Overall length with 3-point hitch: 120.9 in. | 3071 mm
• Overall width: 56.6 in. | 1413 mm
• Wheelbase: 65.7 in. | 1670 mm
• Height to top of ROPS: –
• Height to top of cabin: 89.3 in. | 2267 mm
• Min. ground clearance: 13.1 in. | 334 mm
• Min. turn radius with brakes: (L) 105.51 in. | 2680 mm / (R) 104.72 in. | 2660 mm
• Min. turn radius without brakes: (L) 105.51 in. | 2680 mm / (R) 104.72 in. | 2660 mm
• Weight with ROPS: –
• Weight with cab: 3313 lb | 1503 kg

Standard Tires

• R1 Agricultural – Front: 7-16, 6PR
• R1 Agricultural – Rear: 11.2-24, 8PR
• R3 Turf – Front: –
• R3 Turf – Rear: –
• Golf Tires – Front: 27×8.5-15, 6PR
• Golf Tires – Rear: 41×14.00, 4PR
• R4 Industrial – Front: 25×8.5-14, 6PR
• R4 Industrial – Rear: 380/70-19.5, 6PR
